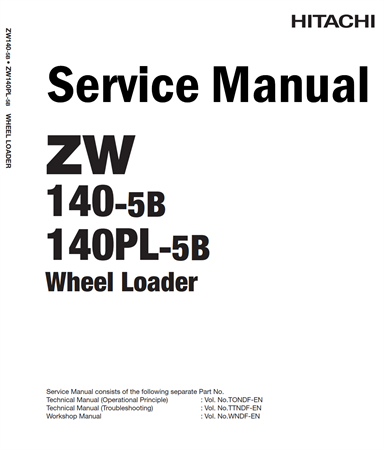

Hitachi ZW140-5B, ZW140PL-5B Wheel Loader Service Repair Manual

Service Repair Manual consists of the following three separate volumes:
1. Hitachi ZW140-5B, ZW140PL-5B Wheel Loader Workshop Manual
2. Hitachi ZW140-5B, ZW140PL-5B Wheel Loader Technical Manual (Operational Principle)
3. Hitachi ZW140-5B, ZW140PL-5B Wheel Loader Technical Manual (Troubleshooting)

Original Factory Service Repair Manual for the Hitachi ZW140-5B, ZW140PL-5B Wheel Loader.

This manual is very detailed and contains all the official Hitachi manufacturer specifications, troubleshooting, repair instructions step by step with illustrations and wiring diagrams. Simple to complicated repairs can be completed effortlessly with the information provided. It is 100 percent complete and intact. The manual is specifically written for the DIY as well as the experienced mechanic.

Models Covered:
Hitachi ZW140-5B Wheel Loader
Hitachi ZW140PL-5B Wheel Loader

CONTENTS AS FOLLOWS:
WORKSHOP MANUAL CONTENTS:
SECTION 1 GENERAL INFORMATION
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening
Group 3 Painting
Group 4 Bleeding Air
Group 5 Releasing Pressure
Group 6 Preparation
SECTION 2 MAINTENANCE STANDARD
Group 1 Body
Group 2 Travel System
Group 3 Front Attachment
Group 4 Front Attachment (Parallel Link)
SECTION 3 BODY
Group 1 Cab
Group 2 Counterweight
Group 3 Center Hinge
Group 4 Engine
Group 5 Radiator Assembly
Group 6 Hydraulic Oil Tank
Group 7 Fuel Tank
Group 8 Pump Device
Group 9 Control Valve
Group 10 Pilot Valve
Group 11 Brake Charge Valve
Group 12 Manifold Valve
Group 13 Solenoid Valve
Group 14 Priority Valve
Group 15 Cooling Fan System
Group 16 Ride Control Device
Group 17 Muffler Filter
Group 18 Parallel Link (Special Parts)
SECTION 4 TRAVEL SYSTEM
Group 1 Tire
Group 2 HST Motor
Group 3 Transmission
Group 4 Axle
Group 5 Propeller Shaft
Group 6 Brake Valve
Group 7 Steering Device
Group 8 Emergency Steering Device
SECTION 5 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
Group 3 Front Attachment (Parallel Link)
Group 4 Cylinder (Parallel Link)

TECHNICAL MANUAL (Operational Principle) CONTENTS:
SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ECM System
Group 4 Hydraulic System
Group 5 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 HST Motor
Group 3 Control Valve
Group 4 Fan Motor and Fan Valve
Group 5 Steering Valve
Group 6 Priority Valve
Group 7 Pilot Valve
Group 8 Brake Charge Valve
Group 9 Manifold Valve
Group 10 Transmission
Group 11 Axle
Group 12 Brake Valve
Group 13 Ride Control Valve
Group 14 Others

TECHNICAL MANUAL (Troubleshooting) CONTENTS:
SECTION 4 OPERATIONAL PERFORMANCE TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Machine Performance Test
Group 5 Component Test
Group 6 Adjustment
SECTION 5 TROUBLESHOOTING
Group 1 Diagnosing Procedure
Group 2 Monitor
Group 3 e-Service
Group 4 Component Layout
Group 5 Troubleshooting A
Group 6 Troubleshooting B
Group 7 Troubleshooting C
Group 8 Air Conditioner

+
Circuit Diagram

———————-

Model Specification: Hitachi ZW140-5B, ZW140PL-5B Wheel Loader
Language: English
File Format: PDF
Requirements: Adobe PDF Reader & WinZip
Zoom In/Out: yes
Notes: Bookmarked, searchable, Fully printable, instant download
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Smartphone, Android etc…

———————-

Pay Today and Download the complete manual instantly. The download link will also be sent to your e-mail. So please make sure your email address is correct. Don’t Forget to Check Spam / Junk if can’t find the new message in your email inbox immediately.

Thanks for Visiting.
